Screen-Pure metal Pleat cartridges are manufactured of 304L and 316L stainless steel mesh with special pleating technology. The cartridges provide high removal efficiency by perfect control of pore size of metal mesh. Metal cartridges are easily cleaned and back flushing with high temperature, high pressure and corrosion resistance.
● Screen-Pure metal cartridges are constructed of 304L stainless mesh and 316L stainless steel mesh which provide high temperature, pressure and corrosion resistance.
● Screen-Pure metal cartridges are manufactured with special Pleat technology to provide repeatedly cleanable performance and easy back-flushing performance.
● Screen-Pure metal cartridges have perfect control of uniformed pore size and high voids. Therefore, the cartridges feature high removal efficiency, low initial pressure drop, high dirt holding capacity and long service life.
● Media：304SS; 316LSS;
● Supporting layers：304SS; 316SS
● Tube：304SS; 316LSS
● Connector：DOC；222；226
● Gasket/O-ring：PTFE；Nitrile
● Rating：2um；5um；10um；25um；40um；50um；75um；100um；125um；150um；200um；300um; 400um
● Maximum operation temperature：400℃（threaded connector）;250℃（PTFE）; 85℃（Nitrile）
● Length（inch）：5；10；20；30；40
● Surface area：0.16 square meter（10inch）
● Diameter：66mm (2.6inch)

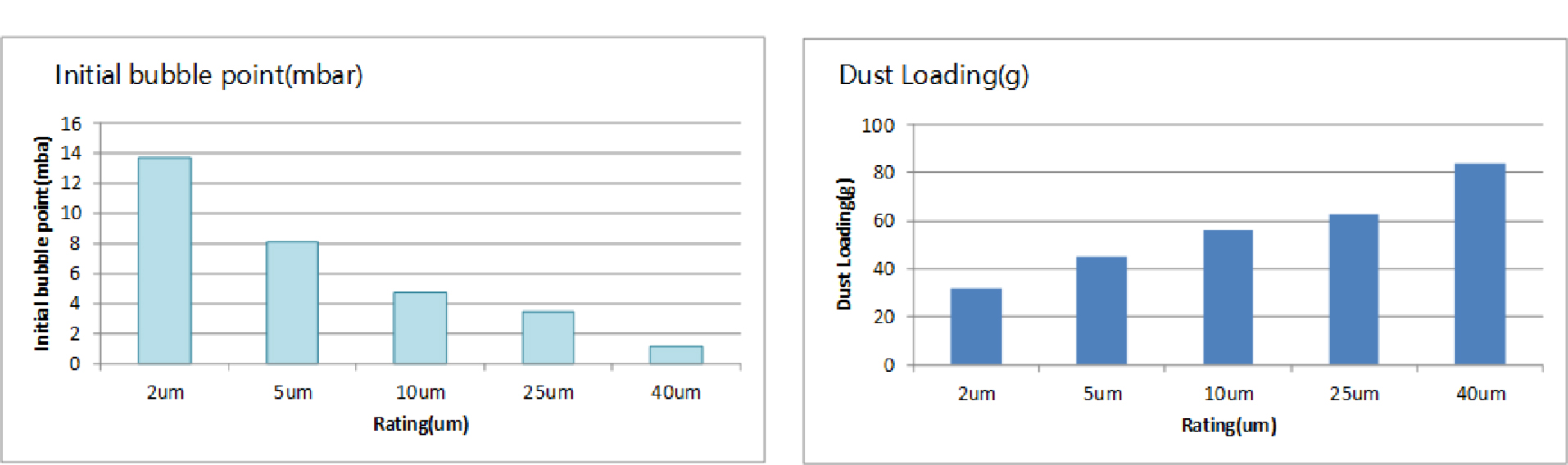

● Initial bubble point (mbar) / ● Loading capability (gram)
● For detailed applications and filtration products, please contact Unifiltech Technical Supports and Sales Engineers.
