Bag-Pure-III
Felt Depth Filter Bags

Unifiltech Bag-Pure-III felt depth filter bags are designed for the applications where high flow rate of up to 150 gpm and long service life are required. The bags are composed of polypropylene and polyester needled felt media feature all welded technology. The construction provides broad chemical compatibility and eliminates the bypass and unloading. The Bag-Pure-III filter bags are reliable with the consistent performance to meet most demanding application specifications.

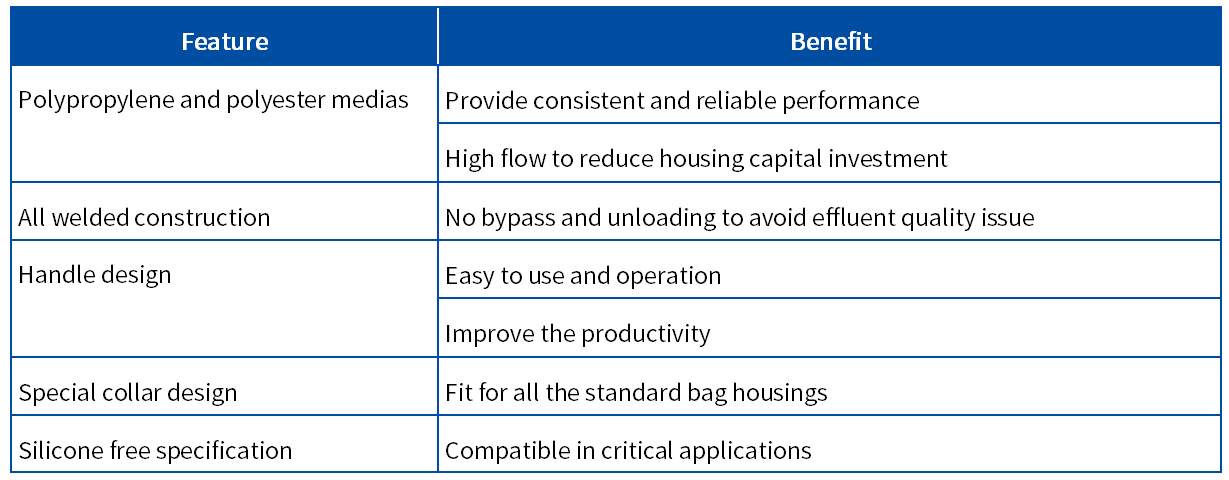

Features and Benefits


Bag Specifications


Applications

● Coating
● Food & Beverage
● Oil & Gas
● Chemicals
● Fine chemicals
● Waste water treatment

Product specifications

● Media: polypropylene; polyester
● Maximum operation temperature:  polypropylene176℉;polyester 300℉
● Maximum operation pressure drop: 35psi@68 ℉
● Recommended change-out pressure drop: 1.4 bar
● Maximum flow rate: 150 gpm
● Sealing: stainless O-ring; Plastic ring

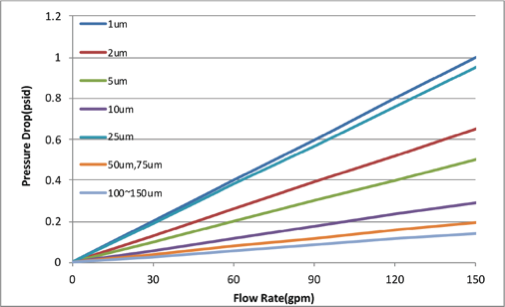

Flow Rate vs Pressure Drop(code 2 bag DI water@20℃)

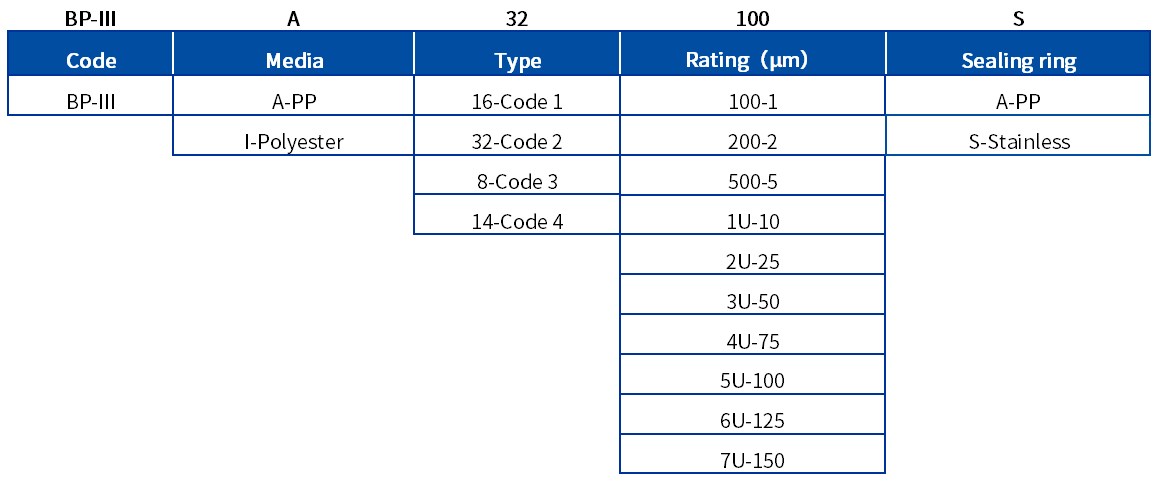

Ordering information
