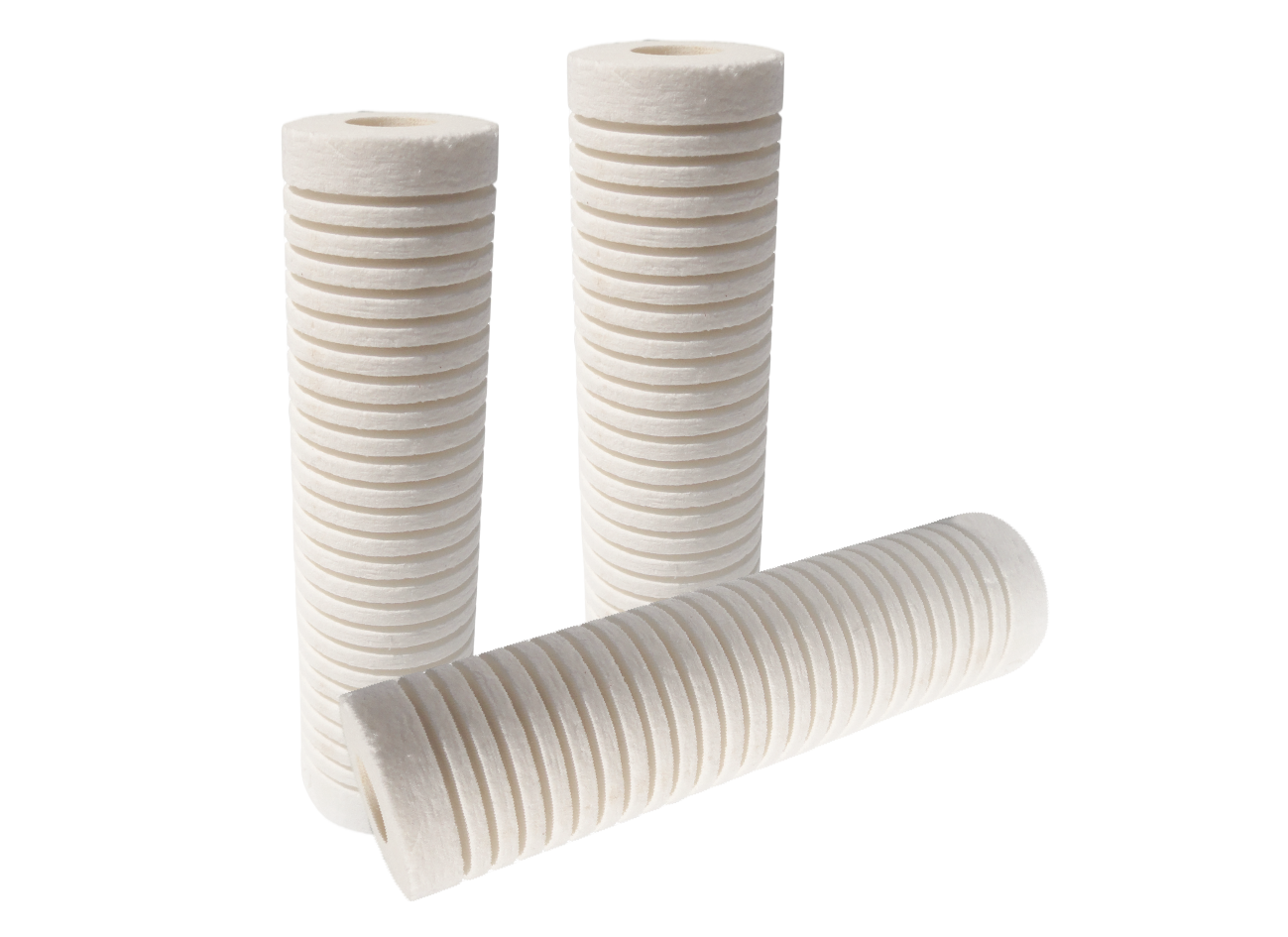

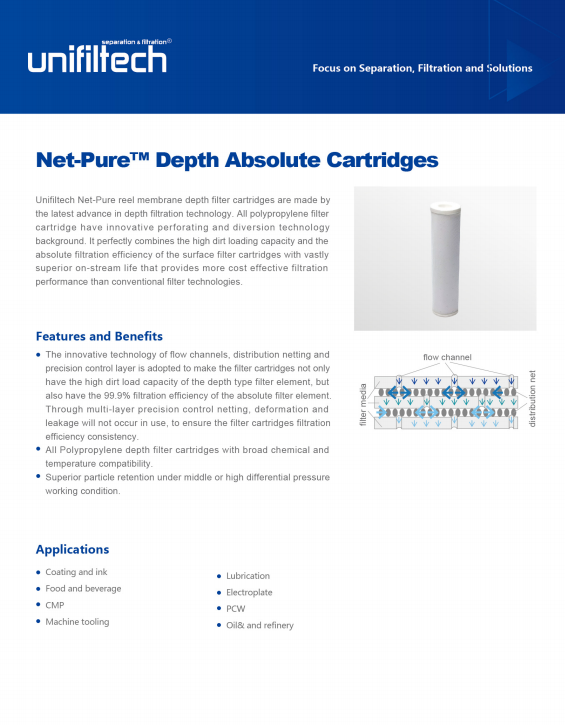

Unifiltech Net-Pure reel film depth absolute filter elements are latest advance in depth filtration technology. The all polypropylene filter have innovative perforating and diversion technology background. It perfectly combines the high dirt loading capacity and the absolute filtration efficiency of the surface filter element with vastly superior on-stream life that provides more cost effective filtration performance than conventional filter technologies.
● The innovative technology of flow channels, distribution netting and precision control layer is adopted to make the filter element not only have the high dirt load capacity of the depth type filter element, but also have the 99.9% filtration efficiency of the absolute filter element. Through multi-layer precision control netting, deformation and leakage will not occur in use, to ensure the filter element filtration efficiency consistency.
● All Polypropylene depth filter cartridges with broad chemical and temperature compatibility.
● Superior particle retention under middle or high differential pressure working condition.
● Coating and ink
● Food and beverage
● CMP
● Machine tooling
● Cleaning
● Lubrication
● Electroplate
● PCW
● Oil& and refinery

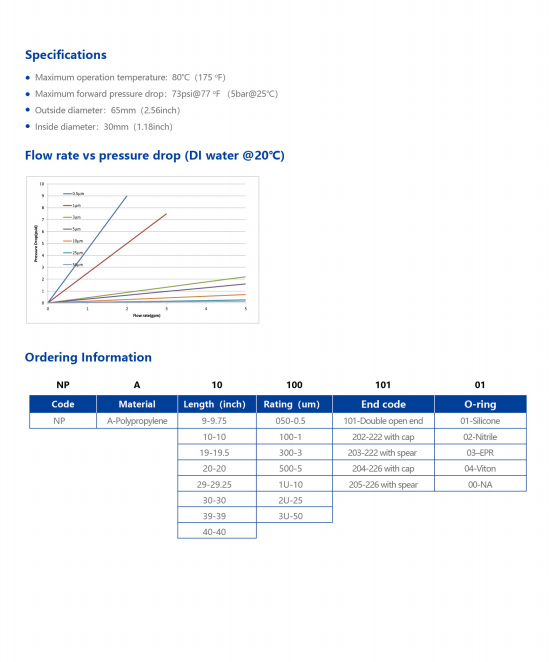

● Maximum operation temperature: PP 80℃（175 οF）

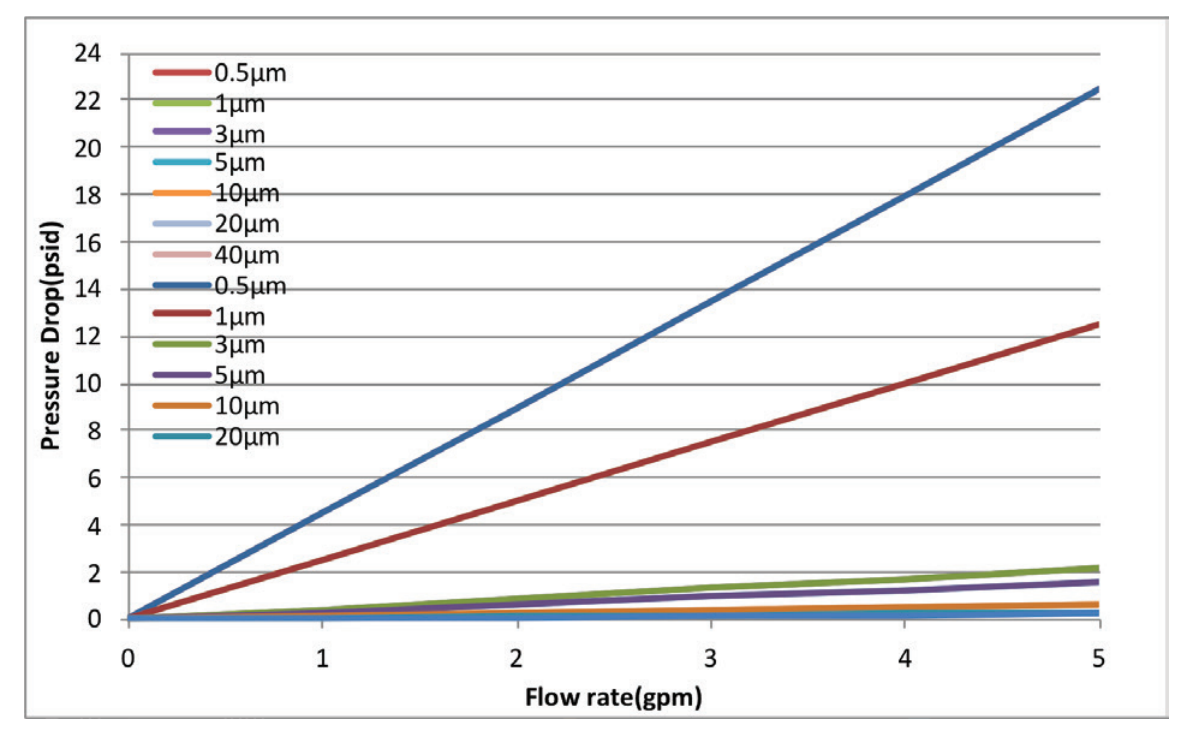

● Maximum forward pressure drop：73psi@77 οF （5bar@25℃）
● Outside diameter：65mm（2.56inch）
● Inside diameter：30mm（1.18inch）
● For detailed applications and filtration products, please contact Unifiltech Technical Supports and Sales Engineers.
