● High Flow Capacity: The High-Pleat-Flow-1 high flow cartridges are designed employing unique pleating technology that maximizes the filtration surface area and available surface area. The construction provides high flow of up to 440 gpm per one element. This result in reduced filter usage which save the filtration capital investment.
● Super fine melt blow fibers: The high flow cartridges are manufactured from super fine melt blow fibers which provide absolute particle removal efficiency of 99.95% with wide chemical compatibility.
● Easy to use: The cartridges are design with operation-friendly tenet. It takes only around 1 minute to installation one element without tool, resulting in higher productivity and less downtime

● Process Cooling Water (PCW)
● Pre-filtration
● Condensate Water
● Bottle Water
● Produced Water
● Waste Water

● Media: Polypropylene melt blow fibers
● Support layers: Polypropylene
● Cage: Polypropylene
● Parts: Polypropylene
● Gasket/O ring: Silicone; Nitrile; EPF; Fluoroelastomer

● Maximum operation temperature: 175 ℉

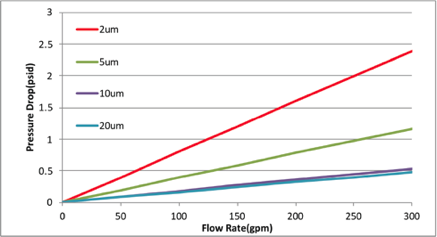

● Maximum forward pressure drop: 50psi@77℉
● Suggested change-out pressure drop: 35psi
● Outside diameter: 6.5 inch
● Inside diameter: 3 inch
● Rating (μm): 1; 2; 5; 10; 25; 40; 50; 75; 100
● Length (inch): 10; 20; 40; 60

Product Details

● For detailed applications and filtration products, please contact Unifiltech Technical Supports and Sales Engineers.
